Stirrups

Innovative solutions for bariatric patients, pediatric patients or robotics.



Hillrom's gynecology, laparoscopy and urology positioning stirrups are designed to meet your specific needs. Whether you work with bariatric patients, pediatric patients or robotics, we have an innovative solution that will work for you.



Attention: Not all products/options are available in all countries. Please check availability with your local Hillrom representative or click on Request More Information to contact Hillrom customer service.

Yellofins Apex Stirrups, close-up with clinician & patient in lithotomy

Yellofins Apex™ Stirrups, O-YFAX

Elevating the gold standard to help you elevate care.

We’re taking lithotomy positioning to a new level with the Yellofins Apex stirrups—so you can achieve new levels of performance and safety in the operating room.

Yellofins Elite Stirrups with lift-assist, side view

Yellofins® Elite Stirrups with Lift-Assist™, #O-YFES

Recognized as the "gold standard" in lithotomy positioning.

The Yellofins Elite Stirrup enables safe and easy positioning while providing enhanced surgical site access. Yellofins Stirrups allow for easy adjustment of abduction and lithotomy in patients up to 500 lbs (227 kg) while maintaining the sterile field.

The boot is extended along its lateral side (referred to as a “lateral fin”) and is padded on the interior. The purpose of this fin is to cover and protect the head of the fibula and the peroneal nerve. The boot is also self-adjusting to minimize pressure on the calf when moving the stirrup and the pad completely encapsulates the foot.

These stirrups also feature lift assist technology to provide easy movement of the leg into the desired position.

Yellofins Stirrups with lift-assist, side view

Yellofins® Stirrups with Lift-Assist™, #O-YFASI

Recognized as the "gold standard" in lithotomy positioning.

The Yellofins Stirrup enables safe and easy positioning while providing enhanced surgical site access. Yellofins Stirrups allow for easy adjustment of abduction and lithotomy in patients up to 350 lbs (159 kg) while maintaining the sterile field.

The boot is extended along its lateral side (referred to as a “lateral fin”) and is padded on the interior. The purpose of this fin is to cover and protect the head of the fibula and the peroneal nerve. The boot is also self-adjusting to minimize pressure on the calf when moving the stirrup and the pad completely encapsulates the foot.

These stirrups also feature lift assist technology to provide easy movement of the leg into the desired position.
Yellofins Stirrups without lift-assist #o-yfsi, side view

Yellofins® Stirrups without Lift-Assist™, #O-YFSI

Recognized as the "gold standard" in lithotomy positioning.

The Yellofins Stirrup without lift assist enables safe and easy positioning while providing enhanced surgical site access. Yellofins Stirrups allow for easy adjustment of abduction and lithotomy in patients up to 350 lbs (159 kg) while maintaining the sterile field.

The boot is extended along its lateral side (referred to as a “lateral fin”) and is padded on the interior. The purpose of this fin is to cover and protect the head of the fibula and the peroneal nerve. The boot is also self-adjusting to minimize pressure on the calf when moving the stirrup and the pad completely encapsulates the foot.

Ultrafins Stirrups, #O-UFAS

Ultrafins® Stirrups, #O-UFAS

Stirrups for the larger patient. With a maximum patient weight of 800 lbs (363 kg) these stirrups are able to accommodate patients with larger calves.

The Ultrafins Stirrup is an upgrade of the Yellofins® Stirrup. The reinforced rod and joint assembly and the flexible boot make the system capable of positioning a patient weighing up to 800 lbs (363 kg). Though designed for large patients, the Ultrafins Stirrup is still appropriate for use with the general patient population.

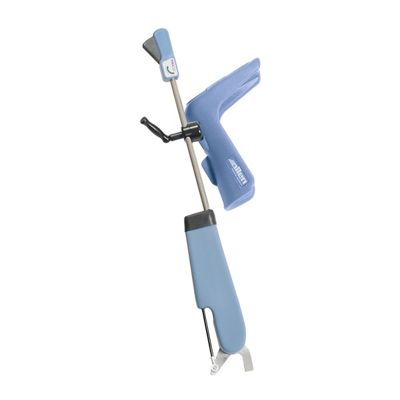

Pal Pro Stirrups, #A-10052, side view

PAL Pro® Stirrups, #A-10052

The power of safety and control at your fingertips.

The PAL Pro Stirrup is the most feature-rich Hillrom stirrup utilizing a standard boot. The stirrup allows for easy adjustment of abduction and lithotomy while maintaining the sterile field. The PAL Pro stirrup is differentiated from the Yellofins® Stirrup by boot design, mechanism cover, the type of hand control and lithotomy indicator.

  Yellofins Apex®
#O-YFAX
Yellofins® Elite
#O-YFES
Yellofins®
#O-YFASI
Yellofins®
(without Lift-Assist™)
#O-YFSI
Ultrafins®
#O-UFAS
PAL Pro®
#A-10052
Lift Mechanism Yes Yes Yes No Yes Yes
Lithotomy Adjustment
(from sterile field)
Yes Yes Yes Yes Yes Yes
Lithotomy Range
(from sterile field)
 +80, -32  +84, -33  +84, -33  +90, -35  +84, -33  +90, -22
Abduction Adjustment
(from sterile field)
Yes Yes Yes Yes Yes Yes
Abduction Range
(from sterile field)
 +23, -9  +25, -9  +25, -9  +25, -9  +25, -9  +25, -9
Lithotomy Indicator No Yes Yes No Yes Yes
Patient Weight Capacity 500 lb (227 kg) 500 lb (227 kg) 350 lb (159 kg) 350 lb (159 kg) 800 lb (363 kg) 350 lb (159 kg)
Protective Fin Design Yes Yes Yes Yes Yes No
Extended Warranty Yes Yes Yes Yes Yes Yes
Hook & Loop Attachment No Yes Yes Yes Yes Yes
Prevents Medial Leg Drop Yes No No No No No
Removable Boot Pads Yes Yes Yes Yes Yes Yes
Single-Point Boot Release Handle Yes No No No No No
